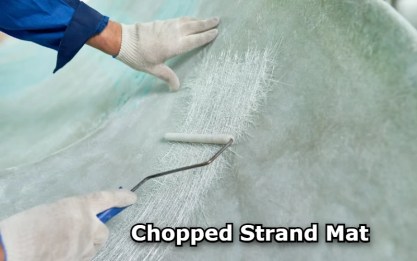

Chopped Strand Mat: When constructing a cable ladder for cable management, the lightweight but durable properties of Chopped Strand Mat can be incorporated into the frame to enhance its structural integrity.
A key material used in many structural applications is Chopped Strand Mat (CSM), which offers versatility and strength for composite materials. CSM comes in a variety of weights and sizes, each suited to different applications and manufacturing processes.
Different Weights and Sizes of Chopped Strand Mat:
Chopped Strand Mat (CSM) comes in a variety of weights and sizes, each tailored to different types of applications and performance requirements.
The weight and width of CSM play a significant role in its flexibility, strength, and resin absorption rate, which in turn affects the overall performance of the composite material in the finished product.
Weight Options:
The weight of Chopped Strand Mat is typically measured in ounces per square yard (oz/yd²), with common weight options ranging from 0.75 oz to 3 oz per square yard.
The choice of weight is important because it determines the mat’s density and its ability to reinforce the resin system.
- 75 oz per square yard: This is the lightest weight option, often used for applications where flexibility and easy handling are more important than heavy reinforcement. It’s suitable for products requiring thin laminates or when the reinforcement needs to conform to complex shapes, such as in decorative parts or lightweight molds.
- 5 oz per square yard: This is the most common weight used in many standard applications. It offers a good balance of strength and flexibility, making it suitable for boat building, automotive parts, and other general-purpose composite products.
- 3 oz per square yard: Heavier weight mats like this provide more substantial reinforcement and are typically used in high-strength applications. This type of CSM is often employed for thick laminates, structural components, or products that need to bear heavier loads or withstand higher stresses.
The weight of the CSM influences its resin absorption, with heavier mats typically requiring more resin to achieve full saturation. It also affects the overall mechanical properties of the finished composite, such as tensile strength and impact resistance.
Lighter mats are often preferred when lower weight or flexibility is needed, while heavier mats are ideal for reinforcing applications that require higher load-bearing capacity.
Common Sizes:
Chopped Strand Mats come in various widths to accommodate different manufacturing processes and requirements.
The most common widths range from 4 inches to 60 inches, with wider mats being used for larger or more complex structures.
- 4 inches to 24 inches: These narrower widths are ideal for smaller applications, repairs, or parts where detailed work is required. They are often used in mold-making, patching, or smaller composite components that do not require full sheet sizes.
- 36 inches to 60 inches: These wider mats are typically used in large-scale applications such as boat hulls, automotive parts, or large moldings. The wider size allows for fewer seams and faster production, as fewer cuts are needed, improving efficiency and reducing the potential for weak points in the laminate.
The width of the mat influences how easily it can be handled and cut for use. Larger widths may require specialized equipment for handling, while narrower mats are easier to manage manually or in small-scale production.
Impact of Weight and Width on Application
Understanding how the weight and width of CSM affect the application is essential for selecting the right material for a project. Heavier mats offer more reinforcement but are less flexible, making them better suited for structural parts.
Lighter mats, on the other hand, provide more flexibility and are easier to work with in applications where detailed work is needed, such as intricate molds or decorative items.
- Weight: The weight impacts resin absorption and the strength of the final composite. Lighter mats are generally used in applications where flexibility is required, while heavier mats are best suited for parts that need added strength and rigidity.
- Width: The width affects how the mat is handled during the manufacturing process. Wider mats are more suited for larger-scale production, as they cover more area with fewer cuts. Narrower mats are useful for smaller, more intricate components, repairs, or custom jobs.
Special Rolls for Full Production vs. Small-Scale Use
Chopped Strand Mat is available in different roll formats to accommodate both large-scale manufacturing and smaller, custom applications.
- Full Rolls: These rolls are typically used in industrial or large-scale production environments. They offer cost savings due to their larger size and are ideal for high-volume operations that need to cover large areas quickly, such as in boat manufacturing or automotive production lines.
- Cut Rolls: For smaller-scale or custom applications, cut rolls of CSM provide more flexibility. These rolls come in pre-determined lengths and widths, allowing manufacturers to purchase only the amount of material needed for a specific project. This is particularly useful for prototyping, small repairs, or when space is limited.
By understanding the weight and size options available for Chopped Strand Mat, manufacturers can better choose the right material for their project, ensuring the right balance of strength, flexibility, and cost-efficiency.
For enhanced strength and versatility, incorporating fiberglass sheets can further elevate the performance of composite materials, providing structural integrity in large-scale applications.
Recommended: HIIT and Strength Training
Conclusion:
Chopped Strand Mat (CSM) is a versatile material that plays a crucial role in reinforcing composite materials. By understanding the various weight and size options available, manufacturers can select the most suitable CSM for their specific applications.
Whether it’s a lightweight, flexible mat for decorative purposes or a heavy-duty mat for structural components, CSM offers a wide range of possibilities. By combining CSM with other materials like fiberglass sheets, manufacturers can create even stronger and more durable composite structures, expanding the potential applications of this versatile material.
